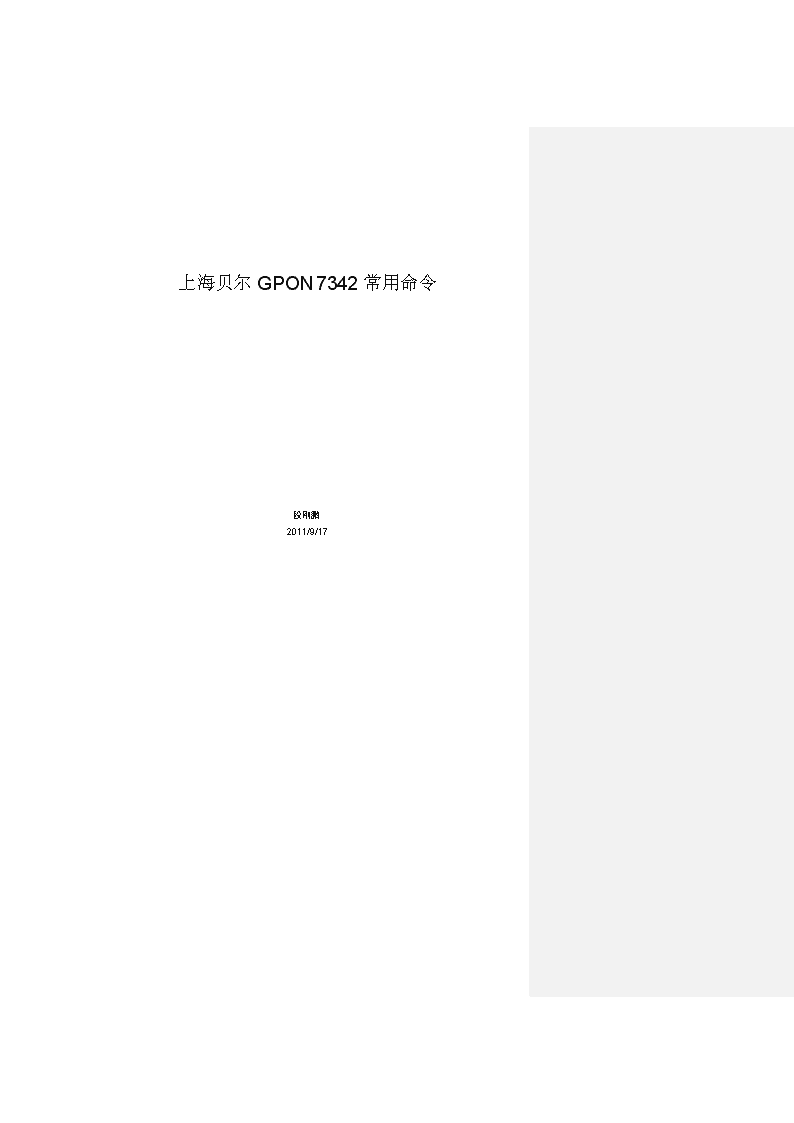

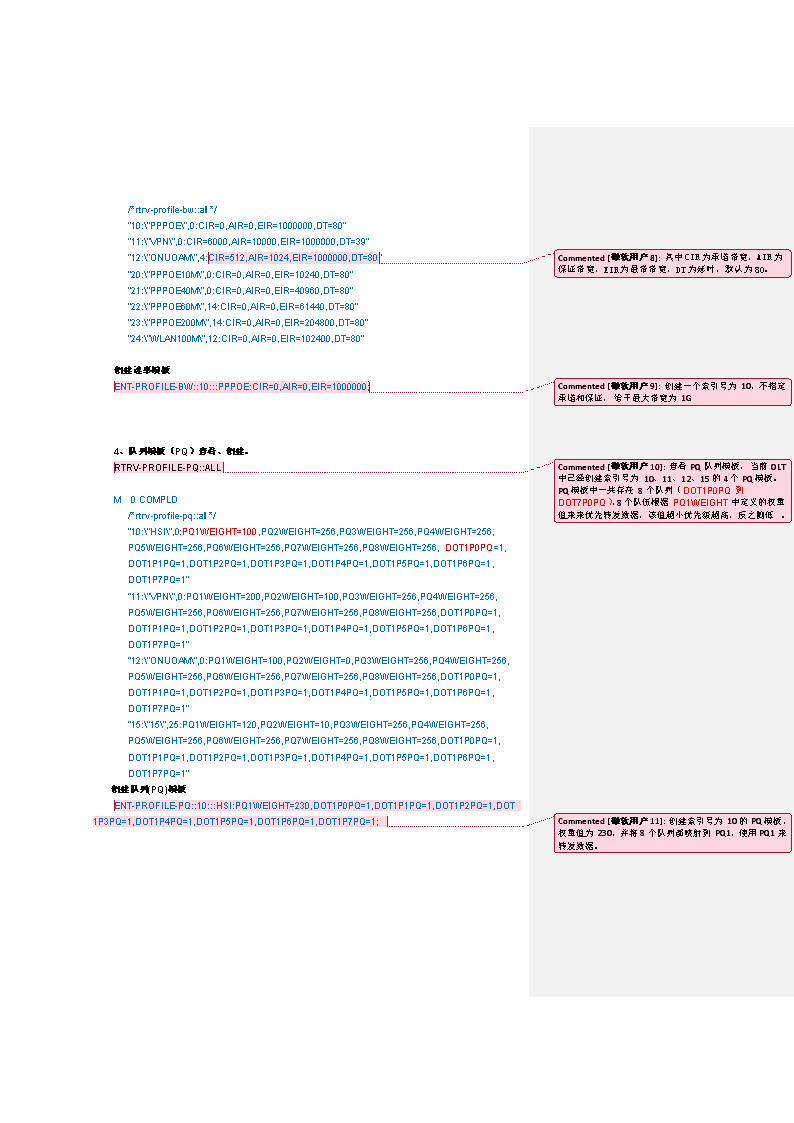

上海贝尔GPON7342常用命令段刚鹏2011/9/17 TL1常用命令基本1、设备板卡查看RTRV-EQPT::ALL;查看板卡状态M0COMPLD/*RTRV-eqpt::all*/"P-OLT:LEEU,LEEU::,""RACK-1:ALTR-E,ALTR-E::,""SHELF-1-1:OLTS-M,OLTS-M:SHELFCLASS=MAINETHERNET:IS-NR,""ACU-1-1:AACU-C,AACU-C::IS-NR,""NTA:EXNT-A,EXNT-A::IS-NRNTA槽位中目前存在型号为EXNT-A的主控板，当前是主用,""NTB:EXNT-A,EXNT-A::IS-STBYNTB槽位中目前存在型号为EXNT-A的主控板，当前是备用,""LT-1-1-1:GLT4-A,GLT4-A:SWOVERRULE=NOOVERRULE,LSMPWR=UP:IS-NR第1个用户板槽位中目前存在型号为GLT4-A的用户板，已经创建并且激活,""LT-1-1-2:,GLT4-A:SWOVERRULE=NOOVERRULE,LSMPWR=UP:OOS-AU第2个用户板槽位中目前存在型号为GLT4-A的用户板，当前未创建并且未激活,""LT-1-1-3:,GLT4-A:SWOVERRULE=NOOVERRULE,LSMPWR=UP:OOS-AU,""LT-1-1-4:,GLT4-A:SWOVERRULE=NOOVERRULE,LSMPWR=UP:OOS-AU,""LT-1-1-5:,GLT4-A:SWOVERRULE=NOOVERRULE,LSMPWR=UP:OOS-AU,""LT-1-1-6:,GLT4-A:SWOVERRULE=NOOVERRULE,LSMPWR=UP:OOS-AU,"创建ENT-EQPT::ACU-1-1:::AACU-C:LSMPWR=UP;ENT-EQPT::NTB:::EXNT-A:LSMPWR=UP:IS;ENT-EQPT::LT-1-1-2:::GLT4-A:LSMPWR=UP:IS;2、告警信息查看rtrv-alm-all;查看告警3、速率(BW)模板速率模板（BW）查看。RTRV-PROFILE-BW::ALL;查看全部创建好的速率模板。当前OLT中已经创建好8个模板。需要使用时直接引用模板的索引号（10-24）M0COMPLD /*rtrv-profile-bw::all*/"10:"PPPOE",0:CIR=0,AIR=0,EIR=1000000,DT=80""11:"VPN",0:CIR=6000,AIR=10000,EIR=1000000,DT=39""12:"ONUOAM",4:CIR=512,AIR=1024,EIR=1000000,DT=80其中CIR为承诺带宽，AIR为保证带宽，EIR为最带带宽，DT为延时，默认为80。""20:"PPPOE10M",0:CIR=0,AIR=0,EIR=10240,DT=80""21:"PPPOE40M",0:CIR=0,AIR=0,EIR=40960,DT=80""22:"PPPOE60M",14:CIR=0,AIR=0,EIR=61440,DT=80""23:"PPPOE200M",14:CIR=0,AIR=0,EIR=204800,DT=80""24:"WLAN100M",12:CIR=0,AIR=0,EIR=102400,DT=80"创建速率模板ENT-PROFILE-BW::10:::PPPOE:CIR=0,AIR=0,EIR=1000000;创建一个索引号为10，不指定承诺和保证，给于最大带宽为1G4、队列模板（PQ）查看、创建。RTRV-PROFILE-PQ::ALL查看PQ队列模板，当前OLT中已经创建索引号为10、11、12、15的4个PQ模板。PQ模板中一共存在8个队列（DOT1P0PQ到DOT7P0PQ），8个队伍根据PQ1WEIGHT中定义的权重值来来优先转发数据，该值越小优先级越高，反之侧低。M0COMPLD/*rtrv-profile-pq::all*/"10:"HSI",0:PQ1WEIGHT=100,PQ2WEIGHT=256,PQ3WEIGHT=256,PQ4WEIGHT=256,PQ5WEIGHT=256,PQ6WEIGHT=256,PQ7WEIGHT=256,PQ8WEIGHT=256,DOT1P0PQ=1,DOT1P1PQ=1,DOT1P2PQ=1,DOT1P3PQ=1,DOT1P4PQ=1,DOT1P5PQ=1,DOT1P6PQ=1,DOT1P7PQ=1""11:"VPN",0:PQ1WEIGHT=200,PQ2WEIGHT=100,PQ3WEIGHT=256,PQ4WEIGHT=256,PQ5WEIGHT=256,PQ6WEIGHT=256,PQ7WEIGHT=256,PQ8WEIGHT=256,DOT1P0PQ=1,DOT1P1PQ=1,DOT1P2PQ=1,DOT1P3PQ=1,DOT1P4PQ=1,DOT1P5PQ=1,DOT1P6PQ=1,DOT1P7PQ=1""12:"ONUOAM",0:PQ1WEIGHT=100,PQ2WEIGHT=0,PQ3WEIGHT=256,PQ4WEIGHT=256,PQ5WEIGHT=256,PQ6WEIGHT=256,PQ7WEIGHT=256,PQ8WEIGHT=256,DOT1P0PQ=1,DOT1P1PQ=1,DOT1P2PQ=1,DOT1P3PQ=1,DOT1P4PQ=1,DOT1P5PQ=1,DOT1P6PQ=1,DOT1P7PQ=1""15:"15",25:PQ1WEIGHT=120,PQ2WEIGHT=10,PQ3WEIGHT=256,PQ4WEIGHT=256,PQ5WEIGHT=256,PQ6WEIGHT=256,PQ7WEIGHT=256,PQ8WEIGHT=256,DOT1P0PQ=1,DOT1P1PQ=1,DOT1P2PQ=1,DOT1P3PQ=1,DOT1P4PQ=1,DOT1P5PQ=1,DOT1P6PQ=1,DOT1P7PQ=1"创建队列(PQ)模板ENT-PROFILE-PQ::10:::HSI:PQ1WEIGHT=230,DOT1P0PQ=1,DOT1P1PQ=1,DOT1P2PQ=1,DOT1P3PQ=1,DOT1P4PQ=1,DOT1P5PQ=1,DOT1P6PQ=1,DOT1P7PQ=1;创建索引号为10的PQ模板，权重值为230，并将8个队列都映射到PQ1，使用PQ1来转发数据。 TL1常用命令ONT侧业务配置（查询）1、ONU查看ONURTRV-ONT::ONT-1-1-1-1-2;查看第1PON板下第1PON口第2台ONT状态M0COMPLD/*RTRV-ONT::ONT-1-1-1-1-2:*/"ONT-1-1-1-1-2::BTRYBKUP=NO,BERINT=8000,DESC1="NULL",DESC2="NULL",PROVVERSION="*",SERNUM=ALCLF8A369B5ONU序列号,SUBSLOCID="WILDCARD",SWVERPLND="3FE53236AOCA21ONU所使用的软件版本",FECUP=DISABLE,SCHEDPROFID=1,SCHEDPROFNM="defSubSchedProf",POWERSHEDPROFID=0,POWERSHEDPROFNM="NULL",ONTENABLE=AUTO,P2PENABLE=DISABLE,RATELIMITOPT=DISABLE,OPTICSHIST=DISABLE,PLNDVAR="",DLSW="DISABLED",EQPTVERNUM=3FE52959AHAA__,SWVERACT=3FE53236AOCA21当前激活的ONU软件版本,SWVERPSV=3FE53213AOCA27,VENDORID=ALCL,EQUIPID=__________I-240E-P__,ONU型号NUMSLOTS=2,NUMTCONT=7,NUMTRFSCH=7,NUMPQ=100,RFFILTER=2:IS-NR进入服务"创建ONUENT-ONT::ONT-1-1-1-1-2::::SERNUM=ALCLF8A369F4,SWVERPLND=3FE53236AOCA21:IS;2、ONUCARD查看rtrv-ontcard::ontcard-1-1-1-1-1-1；查看第1台ONT的第1个CARD状态0COMPLD/*rtrv-ontcard::ontcard-1-1-1-1-1-1:*/"ONTCARD-1-1-1-1-1-1:10_100BASET:ACTCARDTYPE=10_100BASET,ACTONTINTEG=INTEGRATED,ACTNUMPORTS=4,ACTSERNUM="F9AE484E",ACTVERSIONNUM="3FE52555ABAA05",ACTVENDORID="ALCL",ACTCARDID="BVM6L10FRAMANC-C":IS-NR进入服务"创建ONTCARDENT-ONTCARD::ONTCARD-1-1-1-1-2-1:::10_100BASET::IS; 3、ONTENET查看ONTENETrtrv-ontenet::ontenet-1-1-1-1-1-1-3;查看第1台ONT的第1个CARD下第3个ENET口的状态0COMPLD/*rtrv-ontenet::ontenet-1-1-1-1-1-1-3:*/ONTENET-1-1-1-1-1-1-3::CUSTINFO="",AUTODETECT=1000BASETFD,CVLANDEF=0,SESSPROFID=15,SESSPROFNM=flexmode,MAXMACNUM=600,PWROVERRIDE=FALSE,DSCPMAPPROFID=0,DSCPMAPPROFNM="",ARPSENDERIP=ALLZEROS,DTEDCEIND=DCE:IS-NR进入服务"创建ONTENETENT-ONTENET::ONTENET-1-1-1-1-2-1-1::::AUTODETECT=AUTO,CVLANDEF=0,SESSPROFID=11,MAXMACNUM=128:IS;4、业务通道查看RTRV-SERVICE-PORTAL::PORTAL-1-1-1-1-1-1;查看第1个PON口下第1台ONT的第1个通道。在通道中BWPROFUPID=24为引用上行24号速率模板BWPROFDNID=24为引用下行24号速率模板。M0COMPLD/*rtrv-service-portal::portal-1-1-1-1-1-1*/"PORTAL-1-1-1-1-2-1::SVLAN=0,BWPROFUPID=24,BWPROFUPNM=WLAN100M,BWPROFDNID=24,BWPROFDNNM=WLAN100M,SCHEDSERVPROFDNID=1,SCHEDSERVPROFDNNM="defSrvSchedProf",AGGUPCIR=0,AGGUPAIR=0,AGGUPEIR=102400,AGGDNCIR=0,AGGDNAIR=0,AGGDNEIR=102400,CURUPDT=80:IS-NR"创建ENT-SERVICE-PORTAL::PORTAL-1-1-1-1-2-1::::SVLAN=0,BWPROFUPID=24,BWPROFDNID=24上下行引用24号速率(BW)模板:IS;5、业务流查看rtrv-service-flow::flow-1-1-1-1-1-1-3-1&&-5;查看第1台ONU第1个CARD下第1个ENET口的第1条条流配置，M0COMPLD/*rtrv-service-flow::flow-1-1-1-1-2-1-1-1*/"FLOW-1-1-1-1-2-1-1-1::PORTAL=1,SVLAN=1610,BWPROFUPID=0,BWPROFDNID=0,PQPROFID=15,PQPROFNM=15,AESENABLE=DISABLE,LABEL="",CUSTOMERID="",UNISIDEVLAN=65535,NETWORKSIDEVLAN=4096,NUMTAGS=ALL,PBITXLPROFID=0:IS-NR"创建ENT-SERVICE-FLOW::FLOW-1-1-1-1-2-1-1-1::::PORTAL=1引用业务通道1,SVLAN=1783外层标签1783,PQPROFID=15引用PQ队列模板,AESENABLE=DISABLE,UNISIDEVLAN=65535,NETWORKSIDEVLAN=4096:IS; 6、业务VLAN的创建和查看查看RTRV-PONVLAN::PONVLAN-1650;M0COMPLD/*RTRV-PONVLAN::PONVLAN-1650:*/"PONVLAN-1650::MODE=RBRIDGE,SPBITMODE=COPY,SPBITUS=0,ALLOWUNTAGDS=DISABLED,CPBITDS=0,SPBITMAPID=0,SPBITMAPNM="",FWDMCBYCVLAN=DISABLED,NAME="VLAN1650",DHCPRELAY=DISABLED,TAGMODE=STACKED,PPPOERELAY=DISABLED,OPTION82CID=PHYADDR,OPTION82RID=NONE,USGBW=28000000,DSGBW=28000000,USOBF=75,DSOBF=75,USABW=28000000,DSABW=28000000,USABWOB=2100000000,DSABWOB=2100000000,L2CNTRLFR=DISABLED"创建SVLANENT-PONVLAN::PONVLAN-1783::::MODE=RBRIDGE,NAME=VLAN1783,DHCPRELAY=DISABLED,TAGMODE=STACKED,PPPOERELAY=DISABLED;PONVLAN-1783创建1783SVLANTAGMODE=STACKED标签模式为叠加，也就是QINQ7、查看OLT中学习到的FDB（MAC地址）RTRV-PONFDBDYNAMIC::PONVLAN-1783;查看VLANID1783OLT从ONT学习到的MAC0COMPLD/*RTRV-PONFDBDYNAMIC::PONVLAN-1783:*/"PONVLAN-53:00-07-72-0c-8a-4a,BRGPORT-1-1-1-1-1-1-1"8、REPT-OPSTAT-OPTICS::ONT-1-1-1-1-1;查看1板1口第1台ONT的光衰0COMPLD/*REPT-OPSTAT-OPTICS::ONT-1-1-1-1-1:*/"ONT-1-1-1-1-1:ONT_RX_SIGONU侧接收到的光，当前值为-10.814db,"-10.814"""ONT-1-1-1-1-1:ONT_TX_SIG,"UNSUPPORTED"""ONT-1-1-1-1-1:ONT_TEMP,"65.117"""ONT-1-1-1-1-1:ONT_VOLTS,"3.24"""ONT-1-1-1-1-1:ONT_BIAS,"16718"""ONT-1-1-1-1-1:OLT_RX_SIGOLT接收到的光，当前值为-12.2db,"-12.2"" CLI常用命令1、VLAN透传配置透传configurevlanshubid1783moderesidential-bridgeconfigurevlanshubid1783egressnetwork:2configurevlanshubid1783egresslt:1/1/1查看已1783VLAN透传配置isadmin>#infoconfigurevlanshubid1783查看1783VLAN的配置configurevlanshub#------------------------------------------echo"vlan"#------------------------------------------id1783moderesidential-bridge1783VLAN的模式为桥接（版纳目前都是这种模式）floodingdisableegress-portnetwork:2属于1783VLAN的数据从network2口上行exitegress-portlt:1/1/1透传第1PON板exitexit#------------------------------------------2、isadmin>#showvlanshub-fdb1783查看1783VLAN下学习到的MAC表====================================================shub-fdbtable====================================================vlanid|mac|bridge-port|status------+-----------------+------------------+--------178300:00:00:00:02:67lt:1/1/1从第1块PON板下的ONU学习到的MAC地址（用户MAC）learned178300:25:9e:1f:45:d0network:2OLT从上行network2口学习到的MAC地址（此处的MAC是上层设备口的MAC）learned----------------------------------------------------==================================================== 1、上行口配置（interface）configureinterfaceshubport1port-typenetworkconfigureinterfaceshubport1mode1gbps:full强制1G全双工configureinterfaceshubport1admin-statusup激活查看端口状态isadmin>#showinterfaceshubportOLT上行接口状态，目前版纳部分OLT上行采用两个接口，语音数据分开。部分乡下的只用了一个接口上行。===================================================================================================porttable===================================================================================================|admin|oper|||upstream|downstream|port|status|status|speed|type|bwbw-th|bwbw-th|duplex----------+-------+-------+------------+------------+--------+----------+--------+----------+------1auto-upup激活，接口状态UPone-gbnetwork接口类型为network999600100999600100full双工模式为全双工2auto-upupone-gbnetwork998700100998700100full3downdownone-gbunused10000001001000000100full4downdownone-gbunused10000001001000000100full5downdownten-gbunused1000000010010000000100full6downdownten-gbunused1000000010010000000100full7downdownten-gbunused1000000010010000000100full8downdownten-gbunused1000000010010000000100full---------------------------------------------------------------------------------------------------portcount:8===================================================================================================
