HGU网管培训手册(上海贝尔) 9页

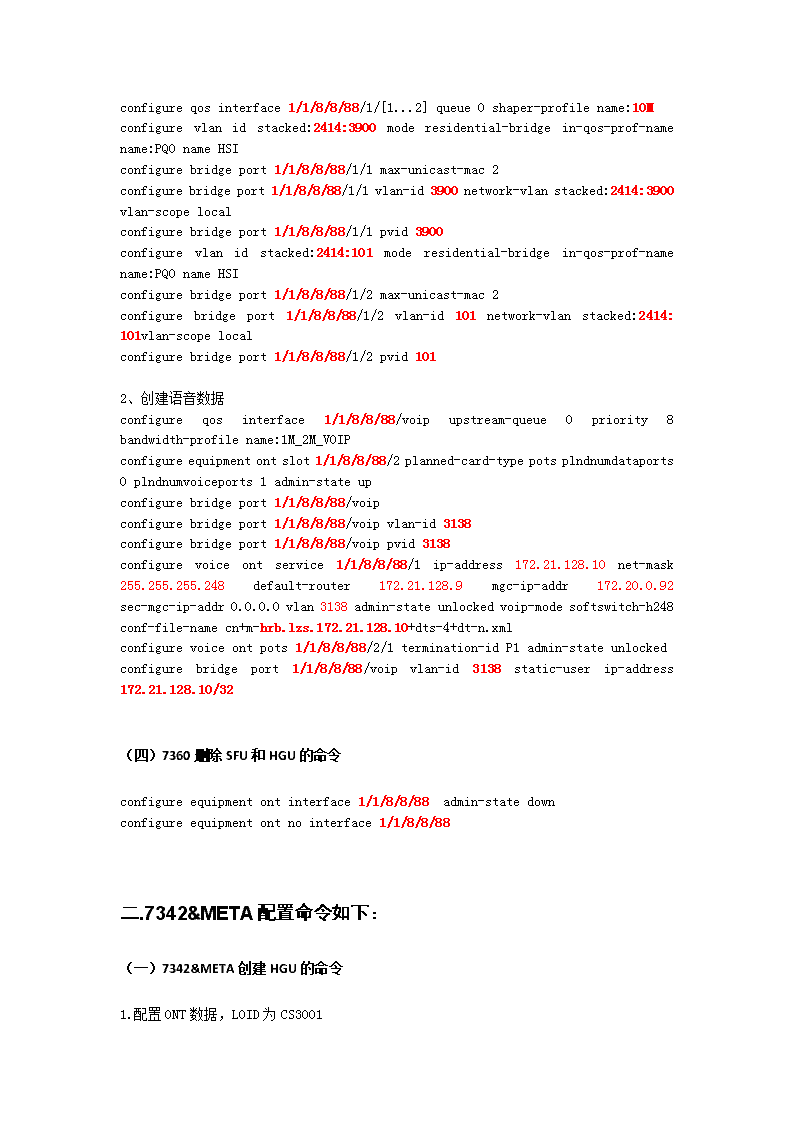

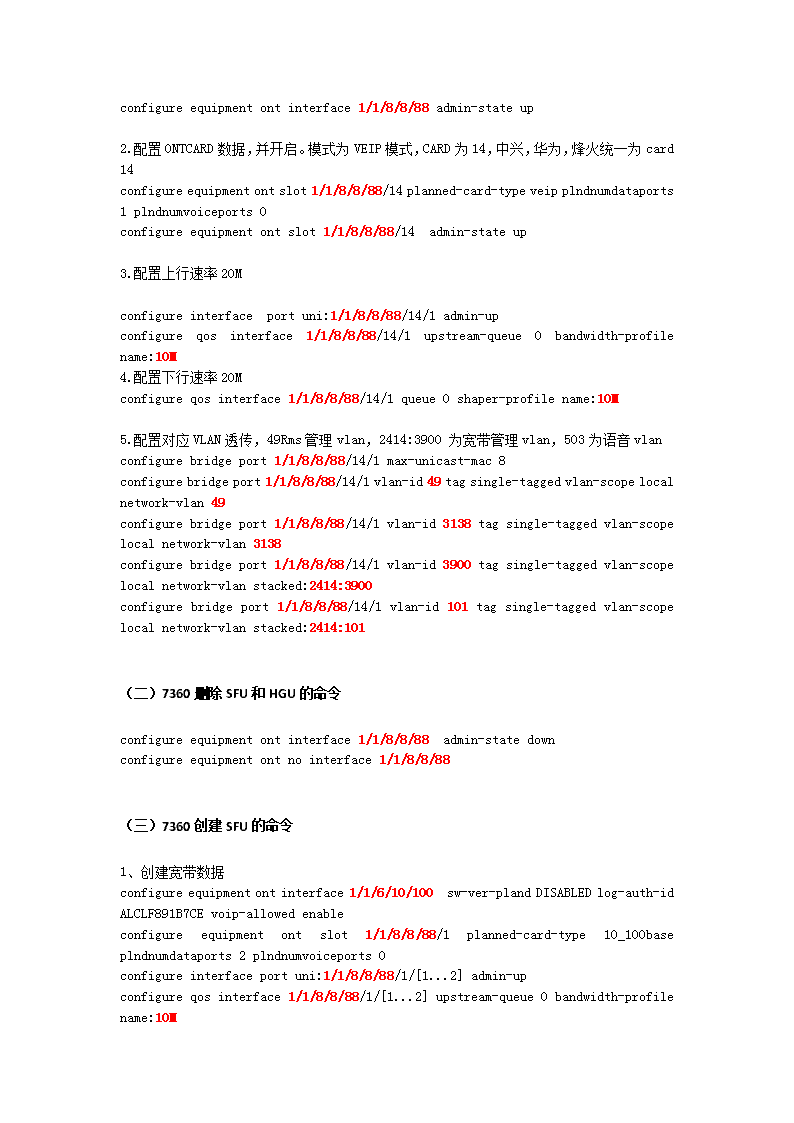

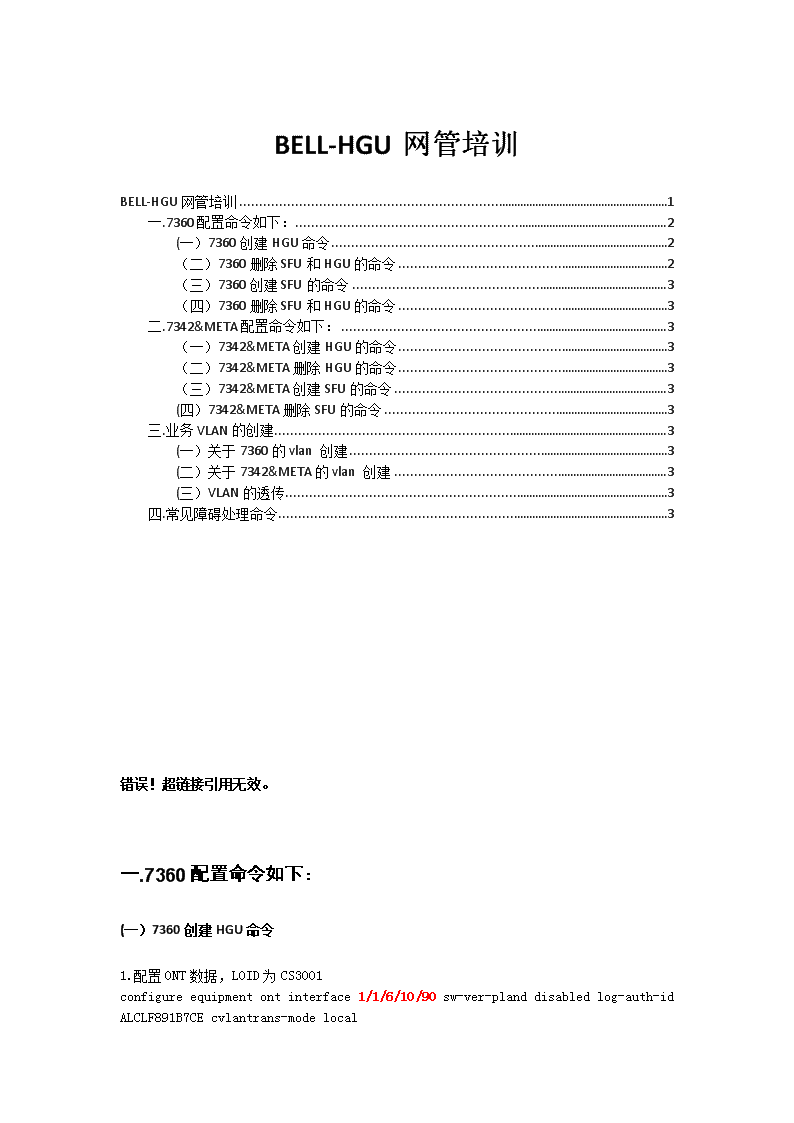

BELL-HGU网管培训BELL-HGU网管培训1一.7360配置命令如下：2(一）7360创建HGU命令2（二）7360删除SFU和HGU的命令2（三）7360创建SFU的命令3（四）7360删除SFU和HGU的命令3二.7342&META配置命令如下：3（一）7342&META创建HGU的命令3（二）7342&META删除HGU的命令3（三）7342&META创建SFU的命令3(四）7342&META删除SFU的命令3三.业务VLAN的创建3(一）关于7360的vlan创建3(二）关于7342&META的vlan创建3(三）VLAN的透传3四.常见障碍处理命令3错误！超链接引用无效。一.7360配置命令如下：(一）7360创建HGU命令1.配置ONT数据，LOID为CS3001configureequipmentontinterface1/1/6/10/90sw-ver-planddisabledlog-auth-idALCLF891B7CEcvlantrans-modelocal   configureequipmentontinterface1/1/8/8/88admin-stateup2.配置ONTCARD数据，并开启。模式为VEIP模式，CARD为14，中兴，华为，烽火统一为card14 configureequipmentontslot1/1/8/8/88/14planned-card-typeveipplndnumdataports1plndnumvoiceports0configureequipmentontslot1/1/8/8/88/14admin-stateup3.配置上行速率20Mconfigureinterfaceportuni:1/1/8/8/88/14/1admin-upconfigureqosinterface1/1/8/8/88/14/1upstream-queue0bandwidth-profilename:10M4.配置下行速率20Mconfigureqosinterface1/1/8/8/88/14/1queue0shaper-profilename:10M5.配置对应VLAN透传，49Rms管理vlan，2414:3900为宽带管理vlan，503为语音vlanconfigurebridgeport1/1/8/8/88/14/1max-unicast-mac8configurebridgeport1/1/8/8/88/14/1vlan-id49tagsingle-taggedvlan-scopelocalnetwork-vlan49configurebridgeport1/1/8/8/88/14/1vlan-id3138tagsingle-taggedvlan-scopelocalnetwork-vlan3138configurebridgeport1/1/8/8/88/14/1vlan-id3900tagsingle-taggedvlan-scopelocalnetwork-vlanstacked:2414:3900configurebridgeport1/1/8/8/88/14/1vlan-id101tagsingle-taggedvlan-scopelocalnetwork-vlanstacked:2414:101（二）7360删除SFU和HGU的命令configureequipmentontinterface1/1/8/8/88admin-statedownconfigureequipmentontnointerface1/1/8/8/88（三）7360创建SFU的命令1、创建宽带数据configureequipmentontinterface1/1/6/10/100sw-ver-plandDISABLEDlog-auth-idALCLF891B7CEvoip-allowedenableconfigureequipmentontslot1/1/8/8/88/1planned-card-type10_100baseplndnumdataports2plndnumvoiceports0configureinterfaceportuni:1/1/8/8/88/1/[1...2]admin-upconfigureqosinterface1/1/8/8/88/1/[1...2]upstream-queue0bandwidth-profilename:10M configureqosinterface1/1/8/8/88/1/[1...2]queue0shaper-profilename:10Mconfigurevlanidstacked:2414:3900moderesidential-bridgein-qos-prof-namename:PQ0nameHSIconfigurebridgeport1/1/8/8/88/1/1max-unicast-mac2configurebridgeport1/1/8/8/88/1/1vlan-id3900network-vlanstacked:2414:3900vlan-scopelocalconfigurebridgeport1/1/8/8/88/1/1pvid3900configurevlanidstacked:2414:101moderesidential-bridgein-qos-prof-namename:PQ0nameHSIconfigurebridgeport1/1/8/8/88/1/2max-unicast-mac2configurebridgeport1/1/8/8/88/1/2vlan-id101network-vlanstacked:2414:101vlan-scopelocalconfigurebridgeport1/1/8/8/88/1/2pvid1012、创建语音数据configureqosinterface1/1/8/8/88/voipupstream-queue0priority8bandwidth-profilename:1M_2M_VOIPconfigureequipmentontslot1/1/8/8/88/2planned-card-typepotsplndnumdataports0plndnumvoiceports1admin-stateupconfigurebridgeport1/1/8/8/88/voipconfigurebridgeport1/1/8/8/88/voipvlan-id3138configurebridgeport1/1/8/8/88/voippvid3138configurevoiceontservice1/1/8/8/88/1ip-address172.21.128.10net-mask255.255.255.248default-router172.21.128.9mgc-ip-addr172.20.0.92sec-mgc-ip-addr0.0.0.0vlan3138admin-stateunlockedvoip-modesoftswitch-h248conf-file-namecn+m-hrb.lzs.172.21.128.10+dts-4+dt-n.xmlconfigurevoiceontpots1/1/8/8/88/2/1termination-idP1admin-stateunlockedconfigurebridgeport1/1/8/8/88/voipvlan-id3138static-userip-address172.21.128.10/32（四）7360删除SFU和HGU的命令configureequipmentontinterface1/1/8/8/88admin-statedownconfigureequipmentontnointerface1/1/8/8/88二.7342&META配置命令如下：（一）7342&META创建HGU的命令1.配置ONT数据，LOID为CS3001 ent-ont::ont-1-1-9-4-16::::LOID=4510000293780154,SWVERPLND=DISABLE,FECUP=DISABLE:IS;2.配置ONTCARD数据，并开启。模式为VEIP模式，CARD为14 ENT-ONTCARD::ONTCARD-1-1-9-4-16-14:::VEIP::IS;3、创建ONTVEIP,最大用户数量8ENT-ONTVEIP::ONTVEIP-1-1-9-4-16-14-1::::NAME=,CUSTINFO=,CVLANDEF=0,SESSPROFID=11,SESSPROFNM=,MAXMACNUM=8;3.创建portal模板，引用速率模板，上行10（索引），下行11（索引）ENT-SERVICE-PORTAL::PORTAL-1-1-9-4-16-1::::SVLAN=0,BWPROFUPID=200,BWPROFDNID=200;4.配置对应VLAN透传，49Rms管理vlan，2414:3900为宽带管理vlan，503为语音vlanENT-SERVICE-FLOW::FLOW-1-1-9-4-16-14-1-1::::PORTAL=1,SVLAN=3999,PQPROFID=1,UNISIDEVLAN=2101,NETWORKSIDEVLAN=2101;ENT-SERVICE-FLOW::FLOW-1-1-9-4-16-14-1-2::::PORTAL=1,SVLAN=3999,PQPROFID=1,UNISIDEVLAN=101,NETWORKSIDEVLAN=101;ENT-SERVICE-FLOW::FLOW-1-1-9-4-16-14-1-3::::PORTAL=1,SVLAN=3770,PQPROFID=1,UNISIDEVLAN=2103,NETWORKSIDEVLAN=2103;ENT-SERVICE-FLOW::FLOW-1-1-9-4-16-14-1-4::::PORTAL=1,SVLAN=3770,PQPROFID=10,UNISIDEVLAN=104,NETWORKSIDEVLAN=104;ENT-SERVICE-FLOW::FLOW-1-1-9-4-16-14-1-5::::PORTAL=1,SVLAN=503,PQPROFID=10,UNISIDEVLAN=503,NETWORKSIDEVLAN=503;ENT-SERVICE-FLOW::FLOW-1-1-9-4-16-14-1-6::::PORTAL=1,SVLAN=49,PQPROFID=10,UNISIDEVLAN=49,NETWORKSIDEVLAN=49;5.创建语音ARPENT-PONARPENT::PONVLAN-503:::172.20.10.2,BRGPORT-1-1-9-4-16-14-1:CVLAN=0;（二）7342&META删除HGU的命令ED-SERVICE-FLOW::FLOW-1-1-9-4-16-14-1-1&&-8:::::OOS;DLT-SERVICE-FLOW::FLOW-1-1-9-4-16-14-1-1&&-8;ED-SERVICE-PORTAL::PORTAL-1-1-9-4-16-1&&-8:::::OOS;DLT-SERVICE-PORTAL::PORTAL-1-1-9-4-16-1&&-8;ED-ONTVEIP::ONTVEIP-1-1-9-4-16-14-1:::::OOS;DLT-ONTVEIP::ONTVEIP-1-1-9-4-16-14-1;ED-ONTCARD::ONTCARD-1-1-9-4-16-14:::::OOS;DLT-ONTCARD::ONTCARD-1-1-9-4-16-14;ED-ONT::ONT-1-1-9-4-16:::::OOS;DLT-ONT::ONT-1-1-9-4-16;（三）7342&META创建SFU的命令1、创建宽带数据 ENT-ONT::ONT-1-1-9-4-16::::LOID=A00609,SWVERPLND=AUTO,RATELIMITOPT=enable:oos;ED-ONT::ONT-1-1-9-4-16:::::IS;ENT-ONTCARD::ONTCARD-1-1-9-4-16-1:::10_100BASET::IS;ent-service-portal::portal-1-1-9-4-16-1::::SVLAN=3770,BWPROFUPID=200,BWPROFDNID=200,SCHEDSERVPROFDNID=21;ent-service-portal::portal-1-1-9-4-16-2::::SVLAN=3770,BWPROFUPID=200,BWPROFDNID=200,SCHEDSERVPROFDNID=21;ent-ontenet::ontenet-1-1-9-4-16-1-1::::AUTODETECT=AUTO,CVLANDEF=3900,SESSPROFID=31,MAXMACNUM=128;ent-ontenet::ontenet-1-1-9-4-16-1-2::::AUTODETECT=AUTO,CVLANDEF=101,SESSPROFID=31,MAXMACNUM=128;ent-service-flow::flow-1-1-9-4-16-1-1-1::::PORTAL=1,SVLAN=3770,PQPROFID=45,UNISIDEVLAN=3900,NETWORKSIDEVLAN=3900;ent-service-flow::flow-1-1-9-4-16-1-2-1::::PORTAL=2,SVLAN=3770,PQPROFID=45,UNISIDEVLAN=101,NETWORKSIDEVLAN=101;2、创建语音数据ENT-SERVICE-VOIP::VOIP-1-1-9-4-16-1::::BWPROFUPID=20,BWPROFDNID=20,PQPROFID=47,SVLAN=503,SRCVLANID=503,IPADDRLOC=10.181.23.146,NETMASKLOC=255.255.255.0,DEFROUTER=10.181.23.1,IPADDRMGC=10.181.232.82,IPADDRMGCSEC=10.181.233.82,IPADDRFTP=0.0.0.0,VOIPMODE=SSH248,PORTMGC=2944,CONFIGFILE=cn+t-RTP/0000++dt-n+t38-n+zt-n.xml,FTPUSERNAME=ngn,FTPPASSWORD=softswitch:IS;ENT-ONTCARD::ONTCARD-1-1-9-4-16-2:::pots::IS;ENT-ONTPOTS::ONTPOTS-1-1-9-4-16-2-1::::VOIPSERV=1,TERMID=P1:IS;ENT-PONARPENT::PONVLAN-503:::10.181.23.146,VOIPBRGPORT-1-1-9-4-16-1:CVLAN=0;(四）7342&META删除SFU的命令1、删除宽带数据dlt-ponigmpchn::flow-1-1-9-4-16-1-4-1;dlt-ponigmpchn::flow-1-1-9-4-16-1-4-2;dlt-ponigmpchn::flow-1-1-9-4-16-1-2-1;dlt-ponigmpchn::flow-1-1-9-4-16-1-2-2;ed-service-flow::flow-1-1-9-4-16-1-1-1&&-2:::::oos;ed-service-flow::flow-1-1-9-4-16-1-2-1&&-2:::::oos;ed-service-flow::flow-1-1-9-4-16-1-3-1&&-2:::::oos;ed-service-flow::flow-1-1-9-4-16-1-4-1&&-2:::::oos;dlt-service-flow::flow-1-1-9-4-16-1-1-1&&-2;dlt-service-flow::flow-1-1-9-4-16-1-2-1&&-2;dlt-service-flow::flow-1-1-9-4-16-1-3-1&&-2;dlt-service-flow::flow-1-1-9-4-16-1-4-1&&-2;ed-service-portal::portal-1-1-9-4-16-1&&-8:::::oos;dlt-service-portal::portal-1-1-9-4-16-1&&-8; ed-ontenet::ontenet-1-1-9-4-16-1-1&&-4:::::oos;dlt-ontenet::ontenet-1-1-9-4-16-1-1&&-4;ed-ontcard::ontcard-1-1-9-4-16-1:::::oos;dlt-ontcard::ontcard-1-1-9-4-16-1;ed-ont::ont-1-1-9-4-16::::oos;dlt-ont::ont-1-1-9-4-16;1、删除语音数据ED-ONTPOTS::ONTPOTS-1-1-9-4-16-2-1&&-2:::::OOS;DLT-ONTPOTS::ONTPOTS-1-1-9-4-16-2-1&&-2;ED-ONTCARD::ONTCARD-1-1-9-4-16-2:::::OOS;DLT-ONTCARD::ONTCARD-1-1-9-4-16-2;ED-SERVICE-VOIP::VOIP-1-1-9-4-16-1:::::OOS;DLT-SERVICE-VOIP::VOIP-1-1-9-4-16-1;三.业务VLAN的创建(一）关于7360的vlan创建1、单层VLAN，一般包括TR069的vlan，语音VLANconfigurevlanid49moderesidential-bridgein-qos-prof-namename:PQ0new-broadcastenableconfigurevlanid830moderesidential-bridgein-qos-prof-namename:PQ0new-broadcastenable2、双层VLAN，一般指宽带和IPTV业务VLANconfigurevlanidstacked:2414:0moderesidential-bridgein-qos-prof-namename:PQ0nameHSIconfigurevlanidstacked:2414:3900moderesidential-bridgein-qos-prof-namename:PQ0nameHSI(二）关于7342&META的vlan创建1、单层VLAN，一般包括TR069的vlan，语音VLANENT-PONVLAN::PONVLAN-49::::MODE=RBRIDGE,NAME=VLAN49,DHCPRELAY=ENABLED,TAGMODE=passthru,PPPOERELAY=DISABLED;ENT-PONVLAN::PONVLAN-503::::MODE=RBRIDGE,NAME=ARPSNPG_503,DHCPRELAY=enable,TAGMODE=passthru,PPPOERELAY=DISABLED2、双层VLAN，一般指宽带和IPTV业务VLANENT-PONVLAN::PONVLAN-2414::::MODE=CVLANLEARN,NAME=VLAN2414,DHCPRELAY=ENABLED,TAGMODE=STACKED; (三）VLAN的透传1、7360配置configureservicevpls49customer1v-vplsvlan49createconfigureservicevpls49saplag-20:49createconfigureservicevpls49saplt:1/1/1:49createconfigureservicevpls49saplt:1/1/2:49createconfigureservicevpls49saplt:1/1/3:49createconfigureservicevpls49saplt:1/1/4:49createconfigureservicevpls49saplt:1/1/5:49createconfigureservicevpls49saplt:1/1/6:49create configureservicevpls49saplt:1/1/7:49createconfigureservicevpls49saplt:1/1/8:49createconfigureservicevpls49noshutdownconfigureservicevpls830customer1v-vplsvlan830createconfigureservicevpls830sapnt-a:xfp:3:830createconfigureservicevpls830saplt:1/1/1:830createconfigureservicevpls830saplt:1/1/2:830createconfigureservicevpls830saplt:1/1/3:830createconfigureservicevpls830saplt:1/1/4:830createconfigureservicevpls830saplt:1/1/5:830createconfigureservicevpls830saplt:1/1/6:830createconfigureservicevpls830saplt:1/1/7:830createconfigureservicevpls830saplt:1/1/8:830createconfigureservicevpls830noshutdownconfigureservicevpls2414customer1v-vplsvlan2414createconfigureservicevpls2414saplag-20:2414createconfigureservicevpls2414saplt:1/1/1:2414createconfigureservicevpls2414noshutdown2、7342配置configurevlanshubid49moderesidential-bridgeconfigurevlanshubid49egress-portnetwork:2上行端口configurevlanshubid49egress-portLT:1/1/1用户PON板configurevlanshubid503moderesidential-bridgeconfigurevlanshubid503egress-portnetwork:2configurevlanshubid503egress-portLT:1/1/1configurevlanshubid2414moderesidential-bridgeconfigurevlanshubid2414egress-portnetwork:2configurevlanshubid2414egress-portLT:1/1/1四.常见障碍处理命令HGU的障碍处理与SFU不同。由于OLT仅对HGU提供二层通道，因此，在OLT上处理HGU障碍，只能通过查看ONT状态，ONT的告警，还有二层MAC地址学习转发情况。1、7360telnet23端口showequipmentontinterface1/1/1/1/1看设备型号信息showinterfaceportont:1/1/1/1/1看ONT状态showvlanbridge-port-fdb1/1/2/4/16/14/1看MAC是否学习showservicefdb-mac查看二层MAC转发 2、7342telnet1023端口RTRV-ONT::ONT-1-1-1-1-1;看ONT状态，型号信息RTRV-PONFDBDYNAMIC::PONVLAN-2414;看MAC地址RTRV-PONFDBDYNAMIC::PONVLAN-49;telnet23端口showvlanshub-fdb2414看网络侧MAC的MAC地址
