钢丝编织液压胶管 gb 3页

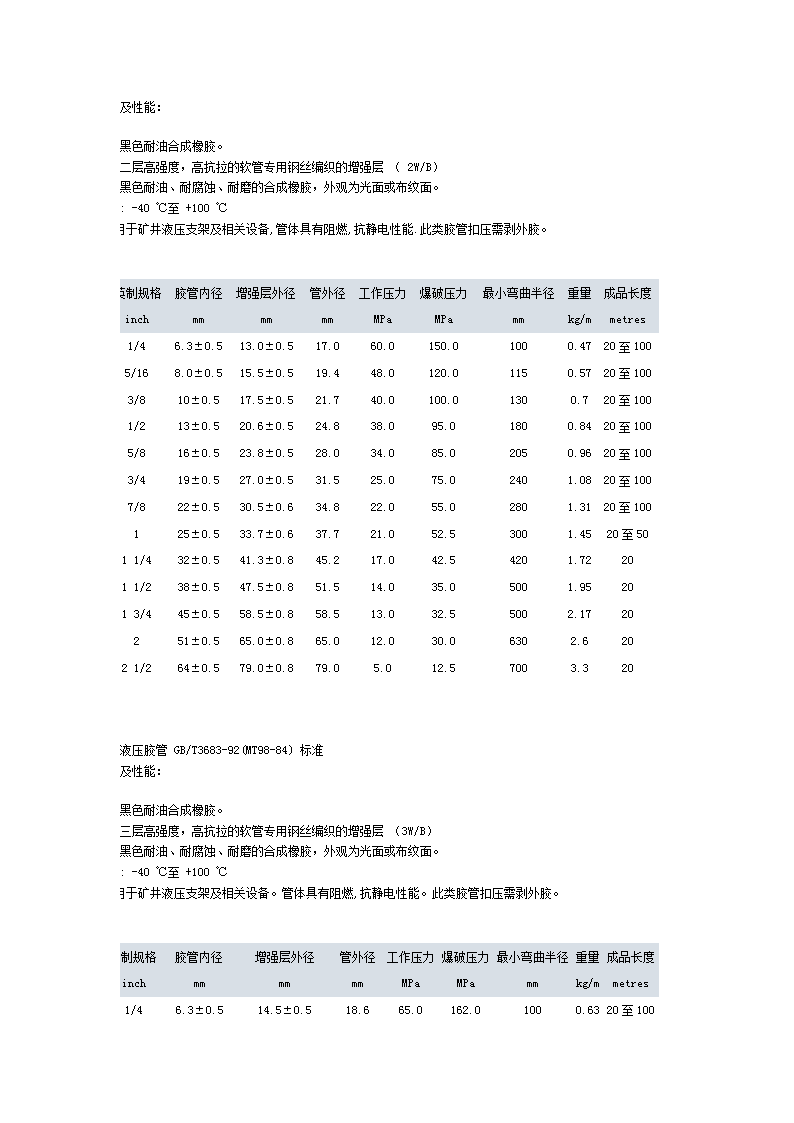

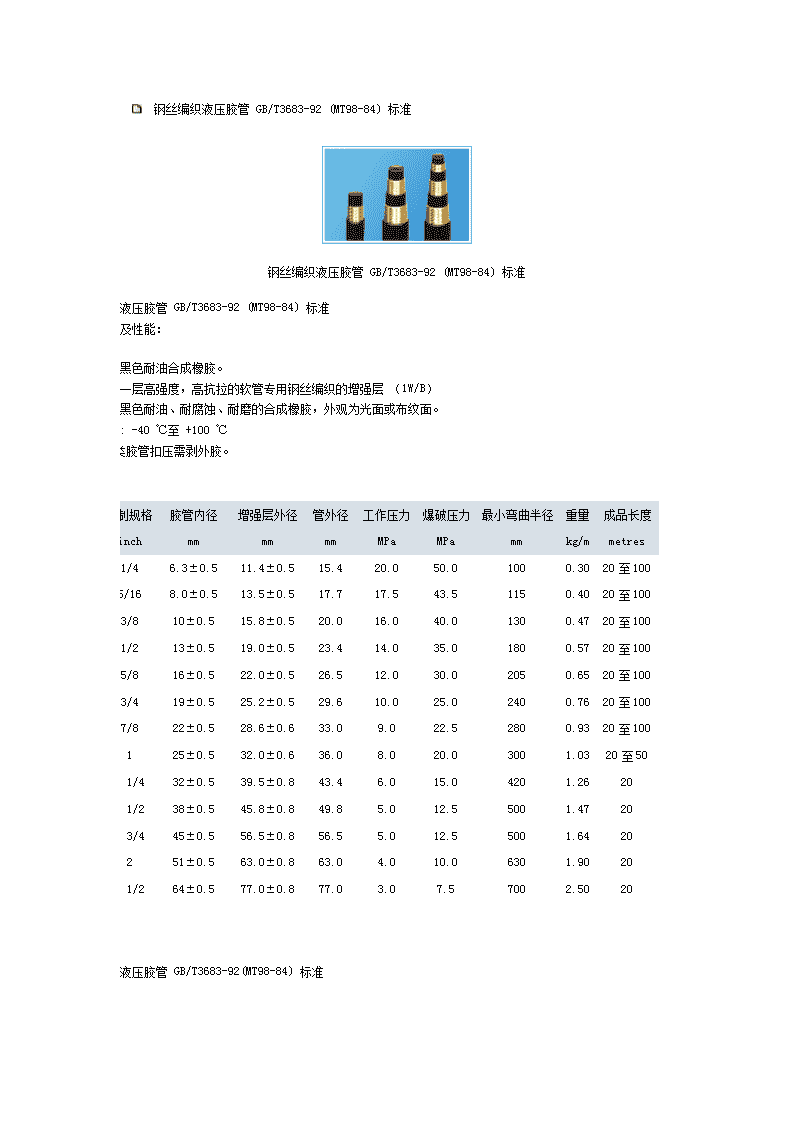

  钢丝编织液压胶管GB/T3683-92(MT98-84)标准钢丝编织液压胶管GB/T3683-92(MT98-84)标准钢丝编织液压胶管GB/T3683-92(MT98-84)标准产品结构及性能：内胶层：黑色耐油合成橡胶。增强层：一层高强度，高抗拉的软管专用钢丝编织的增强层（1W/B）外胶层：黑色耐油、耐腐蚀、耐磨的合成橡胶，外观为光面或布纹面。温度范围:-40℃至+100℃:::::此类胶管扣压需剥外胶。 通径英制规格胶管内径增强层外径管外径工作压力爆破压力最小弯曲半径重量成品长度inchmmmmmmMPaMPammkg/mmetres61/46.3±0.511.4±0.515.420.050.01000.3020至10085/168.0±0.513.5±0.517.717.543.51150.4020至100103/810±0.515.8±0.520.016.040.01300.4720至100131/213±0.519.0±0.523.414.035.01800.5720至100165/816±0.522.0±0.526.512.030.02050.6520至100193/419±0.525.2±0.529.610.025.02400.7620至100227/822±0.528.6±0.633.09.022.52800.9320至10025125±0.532.0±0.636.08.020.03001.0320至503211/432±0.539.5±0.843.46.015.04201.26203811/238±0.545.8±0.849.85.012.55001.47204513/445±0.556.5±0.856.55.012.55001.642051251±0.563.0±0.863.04.010.06301.90206421/264±0.577.0±0.877.03.07.57002.5020 钢丝编织液压胶管GB/T3683-92(MT98-84)标准 产品结构及性能：内胶层：黑色耐油合成橡胶。增强层：二层高强度，高抗拉的软管专用钢丝编织的增强层（2W/B）外胶层：黑色耐油、耐腐蚀、耐磨的合成橡胶，外观为光面或布纹面。温度范围:-40℃至+100℃:::::适用于矿井液压支架及相关设备,管体具有阻燃,抗静电性能.此类胶管扣压需剥外胶。 通径英制规格胶管内径增强层外径管外径工作压力爆破压力最小弯曲半径重量成品长度inchmmmmmmMPaMPammkg/mmetres61/46.3±0.513.0±0.517.060.0150.01000.4720至10085/168.0±0.515.5±0.519.448.0120.01150.5720至100103/810±0.517.5±0.521.740.0100.01300.720至100131/213±0.520.6±0.524.838.095.01800.8420至100165/816±0.523.8±0.528.034.085.02050.9620至100193/419±0.527.0±0.531.525.075.02401.0820至100227/822±0.530.5±0.634.822.055.02801.3120至10025125±0.533.7±0.637.721.052.53001.4520至503211/432±0.541.3±0.845.217.042.54201.72203811/238±0.547.5±0.851.514.035.05001.95204513/445±0.558.5±0.858.513.032.55002.172051251±0.565.0±0.865.012.030.06302.6206421/264±0.579.0±0.879.05.012.57003.320 钢丝编织液压胶管GB/T3683-92(MT98-84)标准产品结构及性能：内胶层：黑色耐油合成橡胶。增强层：三层高强度，高抗拉的软管专用钢丝编织的增强层（3W/B）外胶层：黑色耐油、耐腐蚀、耐磨的合成橡胶，外观为光面或布纹面。温度范围:-40℃至+100℃:::::适用于矿井液压支架及相关设备。管体具有阻燃,抗静电性能。此类胶管扣压需剥外胶。 通径英制规格胶管内径增强层外径管外径工作压力爆破压力最小弯曲半径重量成品长度inchmmmmmmMPaMPammkg/mmetres61/46.3±0.514.5±0.518.665.0162.01000.6320至100 85/168.0±0.517.0±0.521.050.0125.01150.7520至100103/810±0.519.3±0.523.345.0112.01300.9120至100131/213±0.522.3±0.526.543.0100.01801.1020至100165/816±0.525.5±0.529.835.087.02051.2720至100193/419±0.528.7±0.533.228.070.02401.3920至100227/822±0.532.0±0.636.525.062.52801.7320至10025125±0.535.5±0.639.525.060.03001.8920至503211/432±0.543.1±0.847.019.047.54202.20203811/238±0.549.3±0.853.315.037.55002.47204513/445±0.560.5±0.860.510.025.05002.702051251±0.567.0±0.867.08.024.06303.30206421/264±0.581.0±0.881.07.021.07004.20
